Electronic Testing Equipment for 2m Underground Pipe Locator Water Leakage Detection

There are 2 main measurement methods . 1.Rough measurement：spectrum analysis Double-click “spectrum analysis” to enter the spectrum analysis measurement mode, until hear the clear sound effect.Put the probe on the pavement below the pipelines which needs to be detected,and long press the handle switch of connecting wire, finish the measurement of one point, and then loose the handle switch.Press the switch to inspect every one meter along the pipelines.When it is next to the lead source, there will be a sound in the earphones. If the volume increases, the whole spectrum on the instrument’s screen will increase.If it is more close to the leak source, the reaction is more obvious.So this place can be temporarily thought as a leak source. 2.Accurate measurement ：filtering analysis

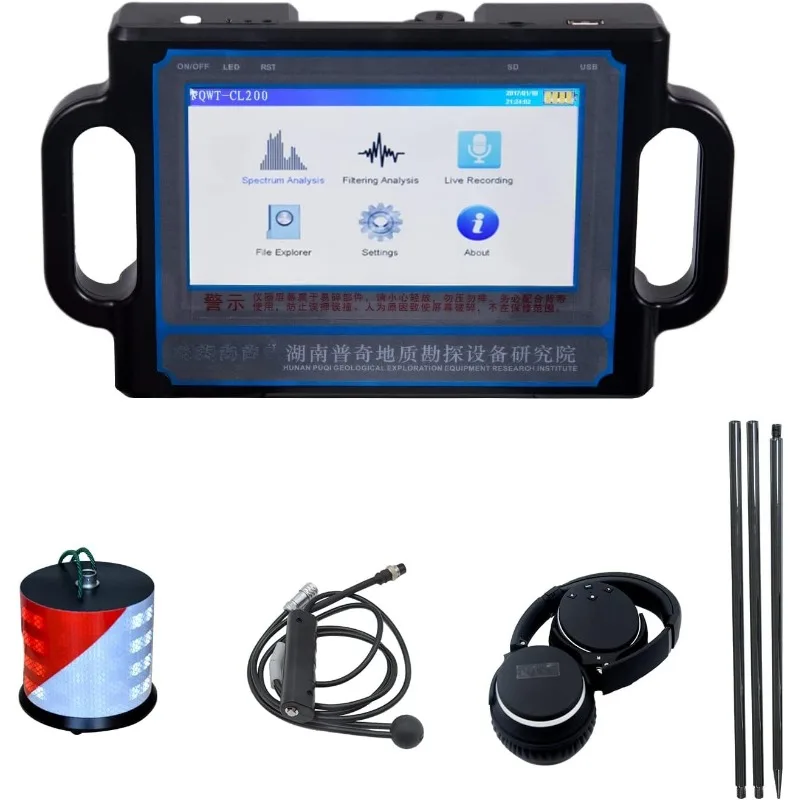

【Professional Leak Detector】-CL200 is made by one of the most famous manufacturer, a professional instrument for water leakage, perfect for water supply companies, heating companies, municipal construction companies and property companies.The maximum detection depth reaches 2 meter.
【Operational Principle】When the fluid in pipeline erupts through leakage source due to the pressure, the noise produced by the impact on internal wall will spread along the pipeline or along the buried layer medium to the ground, and the instrument determines the leakage source through the amplification of leakage noise and the analysis of the spectrum signal.
【Dual-mode Detection】The instrument contains 2 detection modes, rough measurement mode and filtering analysis mode, helps find the leakage quickly.
【Easy to Operate】The water sensor is used to find and determine the location of leakage points of water supply pipeline, and they can also be used to detect the leakage of other pressure piping systems. Our leak detector has 4 languages (English, Turkish, Italian and Arabic) for options, you can learn the operations in 5 minutes by the instructions or operation video.
